Bharatbenz PTOs - G85, MO36S6, G131 for Benz gearboxes

Power Take off (PTO) for BharatBenz 914 truck
This truck has 6 speed gearbox, model is MO36S6. Kozmaksan has the many varient of the PTO for the gearbox. In India, BharatBenz 914 truck doesn't have the air brake. Thus the PTO for this truck should be actuated by mechanical and its rated torque is 230 Nm, much powerful for your truck hydraulic operation in your BharatBenz 914 truck...

This Kozmaksan made mechanical actuated / Pneumatically actuated PTO for BharatBenz 914 is already successfully fitted and working on Indian roads by Attral Drivelines... Made in Europe / Assembled in India !



       -------------------------------------------------------------------------



Power Take Off G131 (PTO) for BharatBenz 2528, BharatBenz 3128 & BharatBenz 49 ton trucks.
These trucks have G131 - 9 Speed gearbox. There are many variants in this PTO, depending upon your application and torque requirements. These imported, Kozmaksan make PTO's are available with rated Torque  from 230 Nm to 840 Nm range. Also maximum range of 1270 Nm PTO available for heavy and rugged truck applications...





          --------------------------------------------------------------------------------------------


Power Take Off (PTO) for BharatBenz 2523, BharatBenz 1214 & BharatBenz 1217 & BharatBenz 3123 trucks.

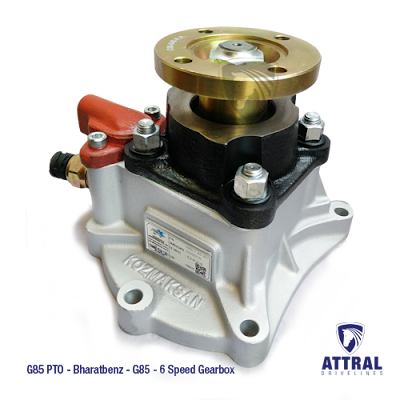

These trucks have G85 - 6 Speed gearbox. There are many variants in this PTO, depending upon your application and torque requirements. These imported G85 Power Take Offs, made by Kozmaksan are available in Attral Drivelines with rated Torque of 850 Nm which is suitable for heavy and rugged truck applications like truck mounted crane and tipping...


This G85 PTO, Made in Europe, Assembled in and for India !



--------------------------------------------------------------------------------------------



RMB2.6085PV 2Axis G85 PTO for BharatBenz 2523, BharatBenz 1214 & BharatBenz 1217 & BharatBenz 3123 trucks.

Imported 2 Axis G85 PTO (Parallel Axis G85 PTO) - 6 Speed gearbox in BharatBenz and Fuso trucks, specially for Palfinger crane and Hyva cranes, where Bent axis pump using...

Usually in Co-axial PTO (Monoblock Type), the bent axis pump will foul with main propeller shaft. This PTO usage will avoid such fouls.

Same PTOs are avaialble with following options...
1. With 40cc / 60cc / 80cc Bent Axis Pump and gear pumps
2. With DIN1300 flange drive for remote connection
3. With UNI 3 Bolt adaptor for such gear pumps

This G85 PTO, Made in Europe, Assembled in and for India ! Contact us for more information.
